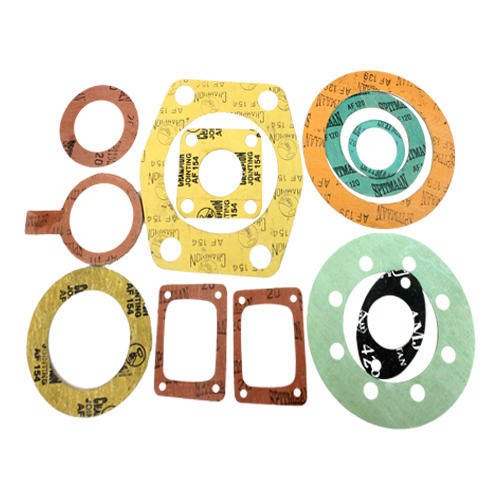

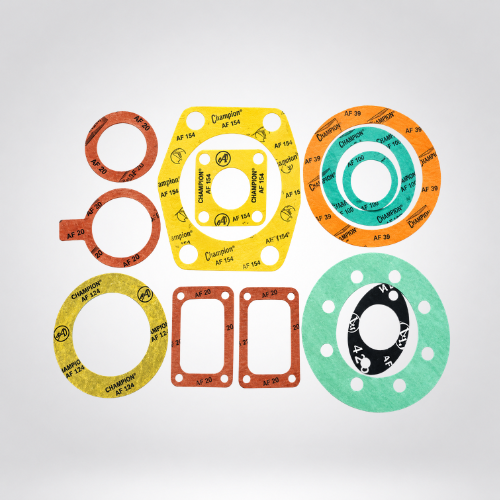

Asbestos Free(AF) Fibre Jointing Sheets – AF154 Super

Asbestos Free(AF) Fibre Jointing Sheets - AF154 Super

A superior performance compressed jointing sheet incorporating a blend of special heat resisting Aramid fibres with a high quality nitrile elastomer binder.

Colour: Yellow

Service Conditions

Suitable for use with Oils, Solvents, Gases, Steam, Dilute Acids and alkalies. (High Service Conditions).

MAX. OPERATING PRESSURE150 barsMAX. SHORT TERM SERVICE TEMP.450oCMAX. CONTINUOUS SERVICE TEMP.250oCMAX. OPERATION TEMP. FOR STEAM250oC

Typical Physical Properties

Density1.8 g/cm3
Tensile StrengthASTM F 15210 Mpa
CompressibilityASTM F 367-11%
Residual StressBS 753125 Mpa
Gas PermeabilityBS 7531 Grade X<0.1 cc/Min
RecoveryASTM F 36≥50%
Water AbsorpationBS 7531≤5%
Ignition Loss≤35%
