Circlip

Labdhi Bearing > Circlip

Showing all 6 results

Frequently Asked Questions

A circlip is a retaining ring used to secure a mechanical component in a shaft groove or bore.
An internal circlip is designed to fit inside a bore or housing, whereas an external circlip is installed around a shaft.
External circlips are commonly used to retain components such as bearings, gears, bushes and other parts on shafts.
Internal circlips are used within bores or housings to prevent components from moving beyond a specified position.
C type circlips have an open C-shaped configuration and are installed into suitable grooves to retain mechanical components.
Linch pins are removable retaining pins used for securing mechanical connections where quick installation and removal are required.
Dowel pins are primarily used for accurate alignment and positioning of mating machine components.

Circlips, Retaining Rings & Industrial Retaining Hardware

Labdhi Engineering Co. is a dealer and supplier of circlips and industrial retaining hardware in Mumbai, offering internal circlips, external circlips, C type circlips, linch pins and dowel pins for a wide range of mechanical and industrial applications.

Circlips, also known as retaining rings, are used to secure components such as bearings, shafts, pins and other machine elements within grooves or designated mounting positions. Depending on the application, internal circlips are generally used inside bores, while external circlips are used on shafts.

Our Industrial Circlips range includes different retaining configurations suitable for machinery, mechanical assemblies, equipment maintenance and engineering applications. Labdhi also supplies C Type Circlips for applications requiring reliable component retention.

In addition to circlips, the category includes Linch Pins and Dowel Pins, which serve different mechanical fastening and positioning requirements. Linch pins are commonly used for quick securing and retention, while dowel pins are used for accurate alignment and positioning of mating components.

As a circlip dealer and supplier in Mumbai, Labdhi Engineering Co. can assist customers in selecting suitable retaining hardware based on component dimensions, groove requirements, shaft or bore size and application requirements.

Products Available

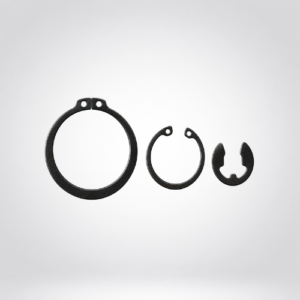

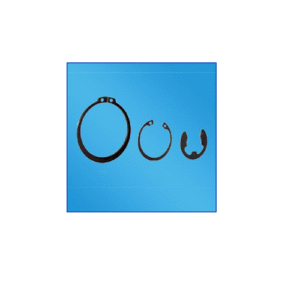

1. Industrial Circlips

Industrial circlips are retaining components used to hold mechanical parts in their designated positions. They are commonly used in machinery, shafts, assemblies and equipment maintenance applications.

Product ID: 30666

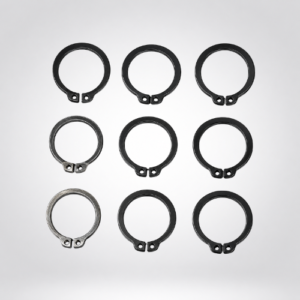

2. External Circlips

External circlips are designed for installation on shafts and are commonly used to retain bearings, gears, bushes and other components.

Product ID: 30667

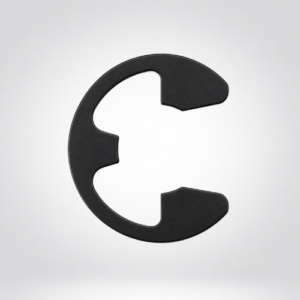

3. C Type Circlips

C type circlips are retaining rings with an open-section design that allows them to be fitted into suitable grooves for mechanical component retention.

Product ID: 30668

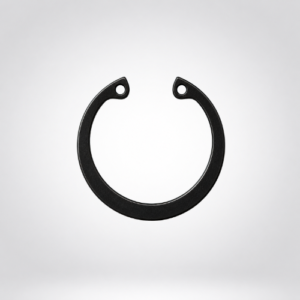

4. Internal Circlips

Internal circlips are designed to fit inside a bore or housing groove and are used to prevent components from moving beyond a defined position.

Product ID: 30669

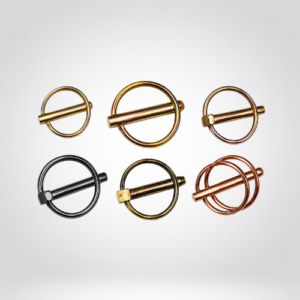

5. Linch Pins

Linch pins are removable retaining pins used for securing components and mechanical connections where quick installation and removal are required.

Product ID: 30884

6. Dowel Pins

Dowel pins are precision locating and alignment components used to position mating machine parts accurately during assembly.

Product ID: 30885

Internal vs External Circlips

Internal Circlip: Installed inside a bore or housing to retain components within the bore.

External Circlip: Installed around a shaft to retain components on the shaft.

C Type Circlip: Used in a shaft or bore groove, depending on its design and application.

Industrial Circlip: Used for general industrial retaining requirements, depending on the specification.

Important: The exact circlip size, groove dimensions and retaining capacity should be matched with the component and manufacturer’s specification before selection.

Applications of Circlips

Circlips and retaining rings can be used across applications such as:

  • Industrial machinery
  • Gear assemblies
  • Bearing assemblies
  • Shafts and rotating equipment
  • Automotive components
  • Pumps and motors
  • Mechanical equipment
  • Material handling equipment
  • Engineering assemblies
  • Equipment maintenance and replacement

Applications of Linch Pins

  • Agricultural equipment
  • Trailers and implements
  • Material handling equipment
  • Mechanical linkages
  • Removable connections
  • Equipment maintenance

Applications of Dowel Pins

  • Machine assembly
  • Component alignment
  • Tooling and fixtures
  • Engineering equipment
  • Mechanical housings
  • Precision positioning

How to Select the Right Circlip?

Before purchasing a circlip, consider the following factors:

  1. Internal or external application: Determine whether the circlip is required inside a bore or around a shaft.
  2. Shaft or bore diameter: Match the circlip to the required installation diameter.
  3. Groove dimensions: Check groove diameter, width and depth.
  4. Material requirements: Consider the operating environment and required material properties.
  5. Load requirements: Determine the retention requirements of the assembly.
  6. Application environment: Consider temperature, corrosion and operating conditions.
  7. Installation method: Confirm the appropriate installation tool and access requirements.

Why Choose Labdhi Engineering Co.?

  • Dealer and supplier of industrial retaining products
  • Range of internal and external circlips
  • C type and industrial circlip options
  • Linch pins and dowel pins available
  • Suitable for industrial and engineering applications
  • Product selection assistance
  • Supply support for Mumbai and surrounding industrial areas

Circlip Dealer & Supplier in Mumbai

Labdhi Engineering Co. supplies industrial retaining hardware for suitable mechanical and engineering applications in Mumbai and surrounding industrial areas.

Customers can enquire about industrial circlips, external circlips, internal circlips, C type circlips, linch pins and dowel pins based on their application requirements.

For product enquiries, please provide the required product type, shaft or bore dimensions, groove specifications, quantity and intended application to help identify a suitable retaining component.

Contact Labdhi Engineering Co. for circlip availability, product details and quotations.
