What Are Jointing Sheets?

Jointing sheets, commonly used to manufacture or cut gaskets, are sealing materials placed between mating surfaces such as pipe flanges, equipment covers and other joints.

Their purpose is to help create a suitable seal between two surfaces when the joint is correctly designed and assembled.

Industrial gasket sheets can be manufactured from different materials and constructions depending on the application.

Champion’s range includes asbestos-free compressed fibre materials and other gasket sheet grades for different industrial service conditions.

Asbestos-Free Fibre Jointing Sheets

Asbestos-free fibre jointing sheets are compressed fibre gasket materials designed as alternatives to traditional asbestos-containing gasket materials in suitable applications.

Champion’s AF range includes different grades intended for different service requirements, including water, steam, oil, high-pressure and acid applications.

Labdhi supplies the following asbestos-free Champion products from your current catalogue:

• AF110 Water
• AF120 Steam
• AF139 High Pressure
• AF154 Super
• AF154 Metallic
• AF159 Oil
• AF160 Acid

The appropriate grade should be selected according to the actual operating conditions rather than simply selecting a product based on the word “high pressure” or “super.”

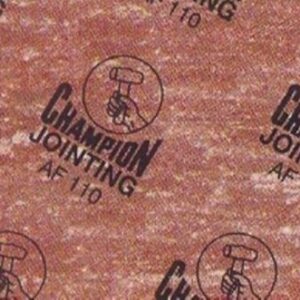

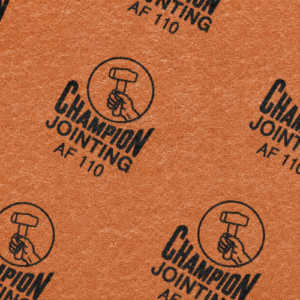

Champion AF110 Water

Asbestos Free Fibre Jointing Sheets – AF110 Water are intended for suitable water and lower-demand sealing applications.

Champion documentation describes AF110 as a general-purpose jointing grade for medium-performance duties involving suitable liquids and gases at relatively lower pressure and temperature conditions.

It can be considered for suitable:

• Water applications
• General industrial sealing
• Pipe flange connections
• Utility systems
• Non-critical applications

The actual pressure and temperature limits should always be checked against the applicable product documentation before use.

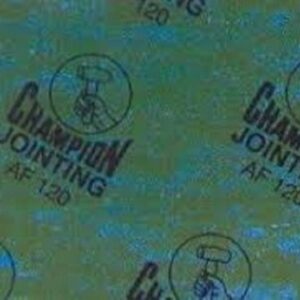

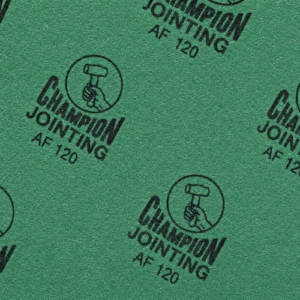

Champion AF120 Steam

Asbestos Free Fibre Jointing Sheets – AF120 Steam are designed for suitable steam and general-purpose industrial sealing applications.

The AF120 range is based on compressed fibre construction and is available for applications requiring a higher level of performance than basic general-purpose jointing materials.

Potential applications include:

• Steam lines
• Water systems
• Industrial piping
• Utility systems
• Flanged connections

The product should be selected according to the actual temperature, pressure and medium.

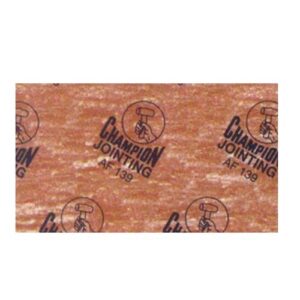

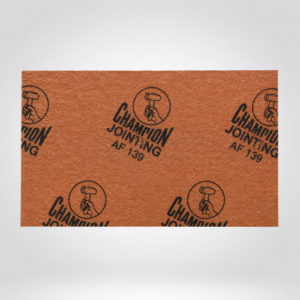

Champion AF139 High Pressure

Asbestos Free Fibre Jointing Sheets – AF139 High Pressure are intended for suitable higher-pressure industrial sealing applications.

Champion product information identifies AF139 as a high-quality jointing sheet based on synthetic aramid fibres and suitable for higher-pressure service conditions.

Potential applications may include:

• Industrial pipelines
• Steam systems
• Process equipment
• Flanged joints
• High-pressure industrial systems

Champion AF154 Super

Asbestos Free Fibre Jointing Sheets – AF154 Super are designed for demanding industrial sealing applications.

Champion’s technical documentation identifies AF154 as a special-purpose asbestos-free jointing sheet, with the material construction based on heat-resistant compressed fibres and elastomeric binders.

The product may be considered for suitable applications involving combinations of:

• Steam
• Oils
• Solvents
• Gases
• Dilute acids
• Alkalis

Actual service conditions should be checked against the relevant Champion technical documentation.

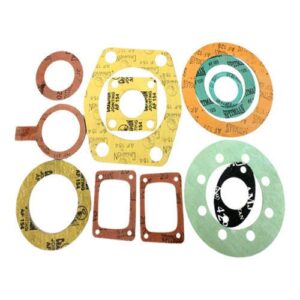

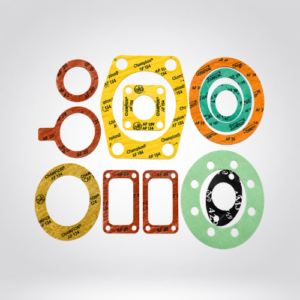

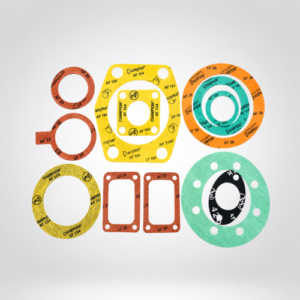

Champion AF154 Metallic – Wire Reinforced

Asbestos Free Fibre Jointing Sheets – AF154 Metallic – Wire Reinforced incorporate reinforcement for suitable higher-demand gasket applications.

Wire-reinforced construction can provide additional structural stability in suitable gasket applications.

Champion’s documentation describes AF154 Metallic as an asbestos-free jointing sheet with wire reinforcement and anti-stick properties.

Potential applications include suitable:

• High-pressure flange connections
• Steam systems
• Oil systems
• Industrial process equipment
• Chemical-related applications

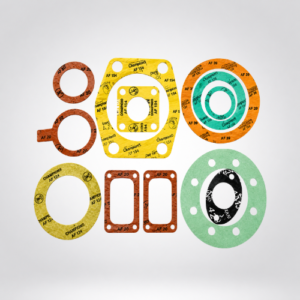

Champion AF159 Oil

Asbestos Free Fibre Jointing Sheets – AF159 Oil are intended for suitable applications involving oils and related industrial media.

AF159 is identified within Champion’s asbestos-free jointing range as an oil-oriented grade.

It can be considered for suitable:

• Oil lines
• Industrial machinery
• Process equipment
• Flanged connections
• Hydrocarbon-related applications

Material compatibility should be checked against the specific medium and operating conditions.

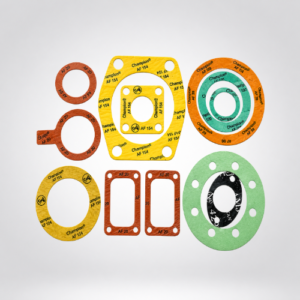

Champion AF160 Acid

Asbestos Free Fibre Jointing Sheets – AF160 Acid are designed for suitable acid and chemical-resistant sealing applications.

Champion documentation identifies AF160 as an acid-resistant asbestos-free compressed fibre jointing sheet.

It can be considered for suitable applications involving:

• Chemical processing
• Acid service
• Industrial process equipment
• Chemical piping
• Flanged connections

The exact acid concentration, temperature and pressure should be checked before selecting this grade.

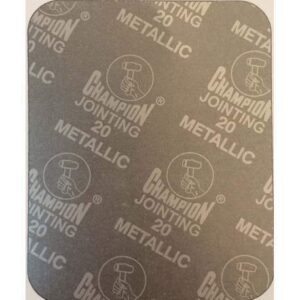

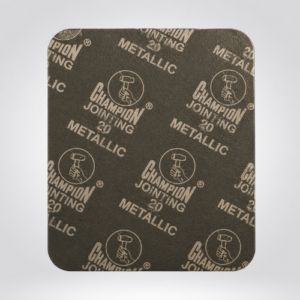

Champion Style 20 Metallic

Champion Style 20 Metallic is a compressed fibre jointing sheet with metallic wire reinforcement.

Champion product information describes Style 20 Metallic as a general-purpose gasket material with steel-wire reinforcement and a graphite finish, suitable for appropriate steam and water applications.

It can be considered for suitable:

• Steam applications
• Water systems
• Industrial piping
• Flanged joints
• General industrial sealing

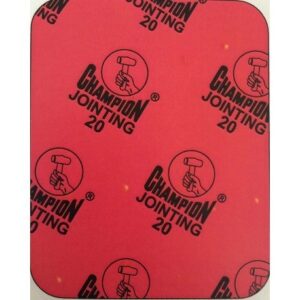

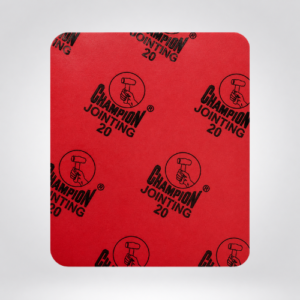

Champion Style 20 Steam Non Metallic

Champion Style 20 Steam Non Metallic is a non-metallic jointing sheet intended for suitable steam and water applications.

Champion’s Style 20 range includes grades intended for general-purpose steam and water service.

The appropriate thickness and grade should be selected according to the flange design, pressure, temperature and medium.

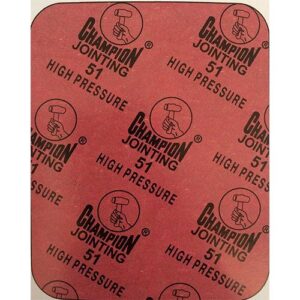

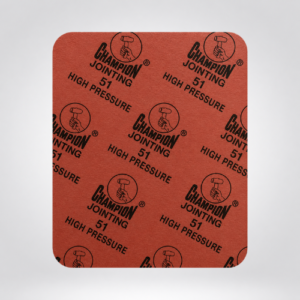

Champion Style 51 High Pressure

Champion Style 51 High Pressure is an industrial jointing sheet designed for suitable high-temperature and high-pressure applications.

Champion’s current product documentation describes Style 51 as a medium-performance jointing sheet for high-temperature and high-pressure applications in areas such as petrochemical, distillate, refinery and process industries. It is available in metallic and non-metallic variants.

Potential applications include:

• Process industries
• Refineries
• Petrochemical systems
• Steam applications
• Industrial piping
• High-pressure flange connections

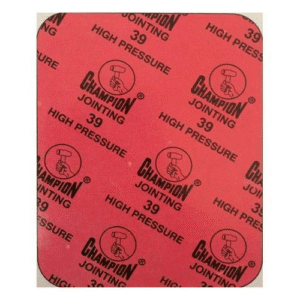

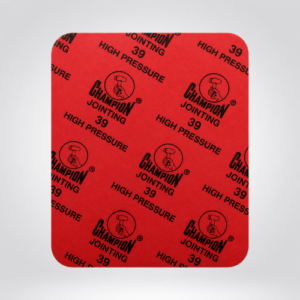

Champion Style 39 High Pressure Gasket Sheet

Champion Style 39 High Pressure Gasket Sheet is included in the product catalogue for suitable high-pressure industrial sealing requirements.

Champion documentation identifies Style 39 Oil as a medium-performance jointing sheet for high-temperature and high-pressure applications, including petrochemical, distillate, refinery and process industries.

The product should be selected according to the actual operating medium, temperature and pressure.

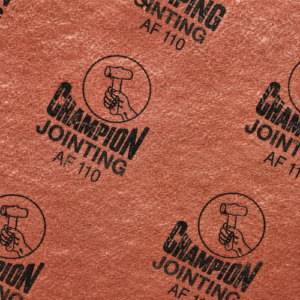

Non Asbestos Fibre Jointing Sheets

Non Asbestos Fibre Jointing Sheets are compressed fibre sealing materials designed for suitable industrial gasket applications without asbestos fibre.

These products may be considered where an asbestos-free jointing material is required and the selected grade is compatible with the application.

Important selection parameters include:

• Temperature
• Pressure
• Medium
• Flange condition
• Chemical compatibility
• Required gasket thickness

Champion Gasket Sheets for Industrial Applications

Champion gasket and jointing sheet products can be used in suitable industrial sealing applications involving:

Water

Appropriate grades can be selected for water and utility systems.

Steam

Steam-rated jointing sheets can be used in suitable steam piping and equipment applications.

Oil

Oil-compatible grades can be considered for suitable oil and hydrocarbon-related applications.

High Pressure

Specific high-pressure grades can be selected for suitable high-pressure flange connections.

Chemical & Acid Service

Appropriate acid/chemical-resistant grades can be considered when compatible with the specific medium.

General Engineering

General-purpose grades can be used for suitable non-critical industrial sealing applications.

How to Select the Right Champion Jointing Sheet?

Choosing a gasket sheet requires more than selecting the highest-rated grade.

1. Medium

Identify what the gasket will be exposed to:

• Water
• Steam
• Oil
• Gas
• Hydrocarbons
• Acids
• Alkalis
• Chemicals

2. Temperature

Determine both:

• Normal operating temperature
• Maximum/short-term temperature

3. Pressure

The operating pressure of the system must be considered when selecting the appropriate grade.

4. Flange Condition

Consider:

• Flange surface condition
• Flange type
• Bolt loading
• Joint configuration
• Surface finish

5. Gasket Thickness

The required thickness depends on the joint design and manufacturer’s recommendations.

6. Chemical Compatibility

The gasket material must be compatible with the actual process medium.

Champion Jointing Sheet Applications

Champion jointing sheets can be used in suitable applications across:

• Chemical plants
• Petrochemical facilities
• Refineries
• Process industries
• Manufacturing plants
• Power-related applications
• Water systems
• Steam systems
• Oil systems
• Industrial piping
• Pumps and equipment
• Flanged pipe connections
• General engineering applications

The actual suitability depends on the specific Champion grade and operating conditions.

Champion Jointing Sheet Dealer & Supplier in Mumbai

Labdhi Engineering Co. is a dealer and supplier of Champion jointing sheets and industrial gasket products in Mumbai.

The range supplied under this category includes asbestos-free fibre jointing sheets, high-pressure jointing sheets, oil grades, acid-resistant grades, metallic reinforced sheets and non-metallic jointing sheets.

Customers can enquire about:

• Champion AF grades
• Champion Style grades
• Metallic jointing sheets
• Non-metallic jointing sheets
• High-pressure gasket sheets
• Oil-resistant gasket sheets
• Acid-resistant gasket sheets

When requesting a quotation, customers should provide the product grade, required thickness, sheet dimensions, quantity and application.

Why Buy Champion Jointing Sheets from Labdhi Engineering Co.?

Labdhi Engineering Co. is a dealer and supplier, not a manufacturer, providing industrial sealing and engineering products according to customer requirements and product availability.

For Champion products, customers can enquire about the required grade based on their:

• Operating medium
• Temperature
• Pressure
• Gasket dimensions
• Thickness
• Application

This helps identify the appropriate product from the available Champion range.

Champion Gasket & Jointing Sheet Supplier in Mumbai

Labdhi Engineering Co. supplies Champion jointing sheets and gasket materials in Mumbai for suitable industrial sealing requirements.

The range includes Champion AF110 Water, AF120 Steam, AF139 High Pressure, AF154 Super, AF154 Metallic, AF159 Oil, AF160 Acid, Champion Style 20 Metallic, Champion Style 20 Steam Non Metallic, Champion Style 39 High Pressure and Champion Style 51 High Pressure.

Champion’s published documentation confirms the availability of both asbestos-free AF jointing sheets and other compressed fibre jointing grades.

Contact Labdhi Engineering Co. for Champion jointing sheet availability, specifications and quotations.
