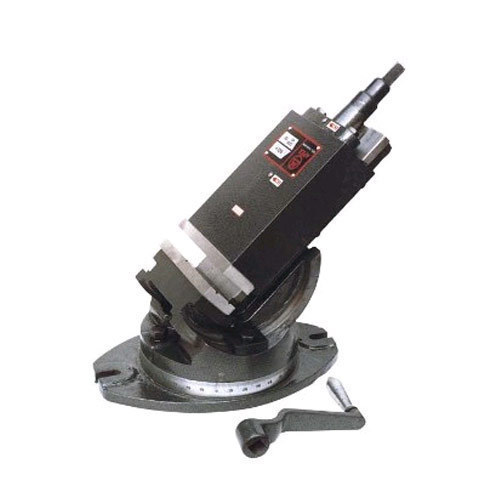

Tilting & Swiveling Vice

Tilting & Swiveling Vice

Product Details:

Material Cast Iron
Jaw Opening 6 Inch,2 Inch
Jaw Depth 25-45 mm
Surface treatment Polished
Height 190 mm

We offer quality Tilting & Swiveling Vice which are made using advance technology and machinery. These are available in compact design with a tilting vice. Our products ensure high operation capacity in minimum time. Our products are available with high tolerance capacity. We are committed towards delivering the optimum quality products to our customers.



Tilting & Swiveling Vice:

Size in mm Price per piece Std.Pkg.
100 11229/- 1
150 18717/- 1
200 29292/- 1


SG Iron Body:

Size in mm Price per piece Std.Pkg.
100 13080/- 1
150 21954/- 1
200 35442/- 1


Specifications:

Code 701
Size in inches 4 6 8
Width of jaws (in mm) 100 150 200
Depth of jaws (in mm) 40 50 60
Opening of jaws (in mm) 100 150 200
Overall length (in mm) 345 510 620
Overall height (in mm) 150 200 230
Overall width (in mm) 180 250 280
Tenon slot size(in mm) 16 20 2
Weight (app. In kgs) 19 42 76



Tilting & Swiveling Vice
