Asbestos Free(AF) Fibre Jointing Sheets – AF 154 Mettalic -Wire Reinforced
Asbestos Free(AF) Fibre Jointing Sheets – AF 154 Mettalic -Wire Reinforced
Asbestos Free(AF) Fibre Jointing Sheets – AF 154 Mettalic -Wire Reinforced
Product Details:
| Minimum Order Quantity | 100 Kg |
| Thickness | 1 mm to 5 mm |
| Size | 1500 x 1500 mm |
| Temperature | 100 |
| Max Operating Pressure | 500 |
| Brand | Champion |

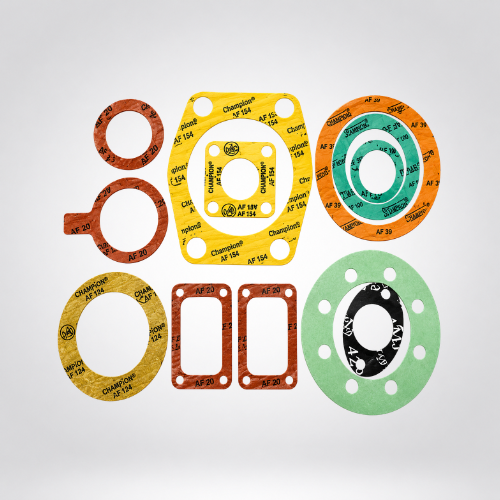

A superior performance compressed jointing sheet incorporating a blend of special heat resisting Aramid fibres with a high quality nitrile elastomer binder.
Service Conditions
Suitable for use with Oils, Solvents, Gases, Steam, Dilute Acids and alkalies. (High Service Conditions).
Typical Physical Properties
| Density | – | 2g/cm3 |
| Tensile Strength | ASTM F 152 | 15 – 17 Mpa |
| Compressibility | ASTM F 36 | 7-11% |
| Residual Stress | BS 7531 | 25 Mpa |
| Gas Permeability | BS 7531 | <0.1 cc/Min |
| Recovery | ASTM F 36 | ≥55% |
| Water Absorpation | BS 7531 | ≤5% |
| Ignition Loss | – | ≤35% |
Additional Information:
- Item Code: 7410
- Production Capacity: 500
- Delivery Time: 7 days
- Packaging Details: roll
