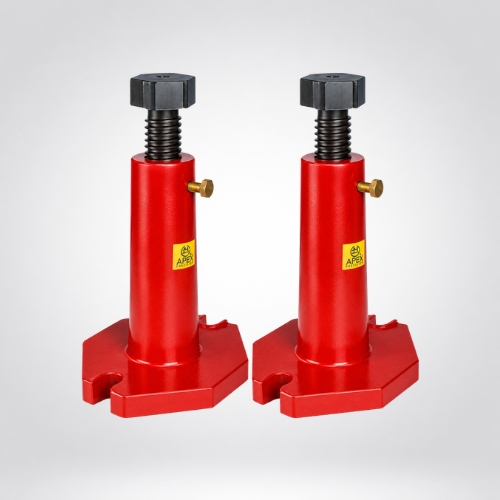

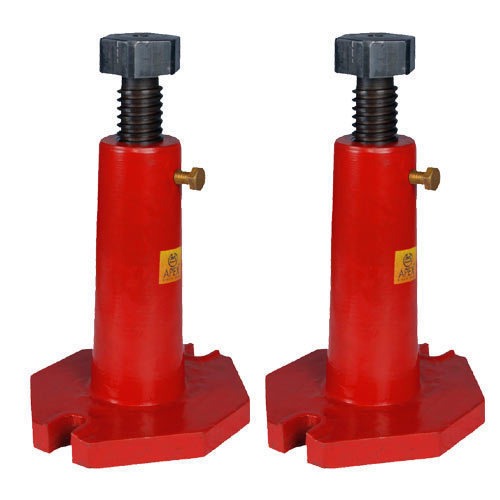

Screw Jack with Double Side Flange
Screw Jack with Double Side Flange
Screw Jack with Double Side Flange
Product Details:
| Material | MS |
| Centering hole with diameter | 12mm |
| Surface treatment | Polished |
| Slot width | 22 mm |
| Application | Industrial |
Attributes:
- Centering hole with diameter 12mm.
- We provide more area for base in order to recompense for height.
- Our Spindle: is made of Carbon Steel with Trapezoidal Thread.
- We offer Housing with High Tensile SG IRON.
- To ensure safe location of U-clamps we offer pads with P Code P911-8/14 as well as 9/26
Features:
- Centering hole dia 12mm.
- More base area provided to compensate for height.
- Spindle: carbon steel trapezoidal thread.
- Housing: high tensile sg iron.
- Pads code p911-8/14 and 9/26 can be used for safe locating of u- clamps
Specifications:
| Code | ds911 | |||||||
| Code ds911 | Range h1 h2 | Barrel dia | Slot width | Base | Static load-kn | Wt. Kg. | Std. Pkg. | |
| ds911-1 | 200-320 | 50 | 22 | 90×160 | 40 | 4. 000 | 02 | |
| ds911-2 | 320-550 | 50 | 22 | 90×160 | 25 | 5. 450 | 02 | |
